Mikrotik L23UGSR-5HaxD2HaxD
Cikkszám: L23UGSR-5HaxD2HaxD
Kiszerelés: db
Termékismertető
Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6!
The new L23UGSR is a dual-band Wi- Fi 6 upgrade of the popular RB922 DIY router. You can use it to build custom low-cost outdoor access points or CPEs – for your home, office, homelab needs or even to launch your own products, such as smart vending machines or ticket stations! Thousands of people across the globe choose the RouterBOARD series to build their products because MikroTik offers no subscriptions, no paywalls, no weird licensing or royalty deals... You buy it – you own it!

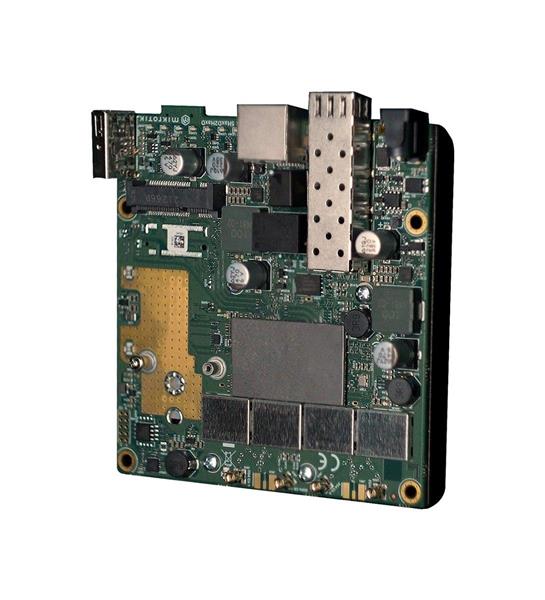

This modular board features a modern Qualcomm Maple CPU based on the ARM architecture, a USB port for extra storage or other needs, Gigabit Ethernet with PoE-in, 2.5 Gigabit SFP for fiber connectivity, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the bottom! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!
A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols for distances up to 30 kilometers.*
The four MMCX connectors enable further customization with an endless variety of antennas you could use. Add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
Specifications
| Details | |
|---|---|
| Product code | L23UGSR-5HaxD2HaxD |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 25 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Nano SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 26 | -75 |
| MCS9 | 24 | -70 |
| MCS11 | 22 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 25 | -75 |
| MCS9 | 23 | -70 |
| MCS11 | 20 | -67 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
