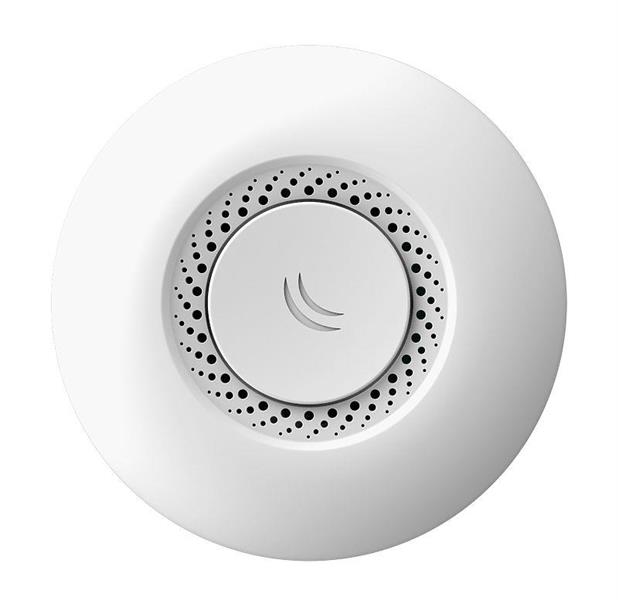

Mikrotik cAP 2nD, Ceiling AP, 2.4GHz, 400MHz CPU, 64MB RAM, RouterOS L4
Cikkszám: RBcAP2nD
Kiszerelés: db
Termékismertető
cAP 2n
RouterBOARD cAP-2n (ceiling Access Point) is our first 2.4GHz ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2n supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Product specifications
| Details | |
|---|---|
| Product code | RBcAP2n |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9331-AL1A |
| Wireless standards | 802.11b/g/n |
| Number of USB ports | 0 |
| Power Jack | 0 |
| PoE in | Passive |
| Supported input voltage | 11 V - 57 V |
| PoE out | No |
| Voltage Monitor | No |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Dimensions | 185mm diameter, 31mm heigh |
| Operating System | RouterOS |
| Operating temperature range | -30C to +70C |
| License level | 4 |
| Antenna gain DBI | 2 |
| Current Monitor | No |
| CPU | AR9331-AL1A |
| Max Power consumption | 2W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Number of chains | 1 |
| Serial port | None |
Wireless specifications
| 2.4 GHz | ||
|---|---|---|
| TX | RX | |
| 1MBit/s | 17 | -96 |
| 11MBit/s | 17 | -88 |
| 6MBit/s | 15 | -92 |
| 54MBit/s | 11 | -73 |
| MCS0 | 15 | -92 |
| MCS7 | 10 | -70 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Letölthető fájlok, adatlapok
| cAP Datasheet.pdf |
