Mikrotik hEX with Dual Core 880MHz MHz CPU, 256MB RAM, 5 Gigabit LAN ports, USB, RouterOS L4, plastic case, P
Nyitólap
> Mikrotik
> Intergrated Solutions
> Ethernet Routers
> hEX with Dual Core 880MHz MHz CPU, 256MB RAM, 5 Gigabit LAN ports, USB, RouterOS L4, plastic case, P
Márka: Mikrotik
Cikkszám: hEX (RB750Gr3)
Kiszerelés: db
Cikkszám: hEX (RB750Gr3)
Kiszerelés: db
Termékismertető

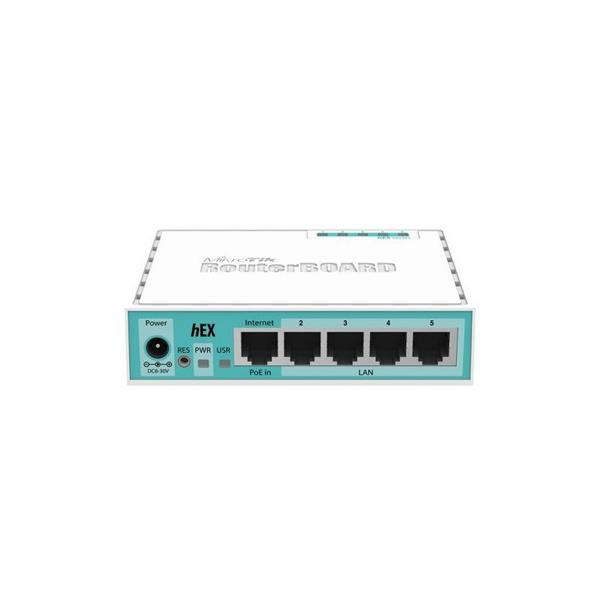

hEX
The hEX is a small five port Gigabit ethernet router in a nice plastic case for managing your wired SOHO network.
The unit is equipped with a powerful 720MHz CPU, 64MB RAM, five Gigabit Ethernet ports and a RouterOS L4 license. The device supports 6-30V input voltage and passive PoE input
Product specifications
| Details | |
|---|---|
| Product code | RB750Gr2 |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 5 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| Power Jack | 1 |
| PoE out | No |
| PoE in | Yes |
| Supported input voltage | 6 V - 30 V |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 113x89x28mm |
| Operating System | RouterOS |
| Operating temperature range | -30 + 70 C |
| Current Monitor | No |
| CPU | QCA9556-AR4A |
| Max Power consumption | 4W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Serial port | None |
| Suggested price | $59.95 |
Performance test results
| RB750Gr2 | QCA9556 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 773.7 | 396.1 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 112.3 | 460.0 | 114.6 | 58.7 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 729.2 | 373.4 |
| Routing | 25 simple queues | 81.2 | 986.1 | 178.4 | 730.7 | 184.8 | 94.6 |
| Routing | 25 ip filter rules | 81.2 | 986.1 | 81.2 | 332.6 | 78.9 | 40.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Letölthető fájlok, adatlapok
| hEX Datasheet.pdf |
