Mikrotik Atheros QCA8519 400 MHz CPU, 64MB RAM, 24xGigabit LAN, 2xSFP+ cage, RouterOS L5, LCD panel, desktop
Nyitólap
> Mikrotik
> Atheros QCA8519 400 MHz CPU, 64MB RAM, 24xGigabit LAN, 2xSFP+ cage, RouterOS L5, LCD panel, desktop
Márka: Mikrotik
Cikkszám: CRS226-24G-2S+IN
Kiszerelés: db
Cikkszám: CRS226-24G-2S+IN
Kiszerelés: db
Kapcsolódó termékek
Termékismertető

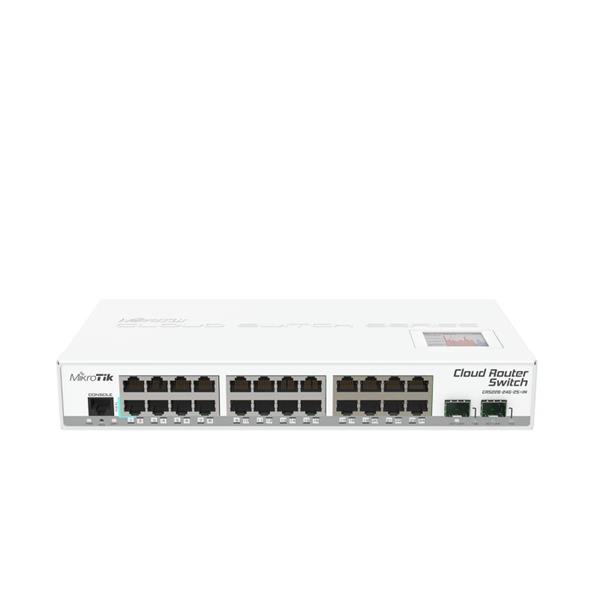

CRS226-24G-2S+IN
Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
Product specifications
| Details | |
|---|---|
| Product code | CRS226-24G-2S+IN |
| SFP DDMI | Yes |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 24 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| Power Jack | 1 |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| PoE out | No |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 285x145x45mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C |
| License level | 5 |
| Current Monitor | No |
| CPU | QCA8519-AC2C |
| Max Power consumption | 21W |
| SFP ports | None |
| SFP+ ports | 2 |
| Serial port | RJ45 |
Letölthető fájlok, adatlapok
| CRS226_24G_2S_IN Datasheet.pdf |
